After finishing the construction of cooling tower
and before running the cooling tower commercially,
the cooling tower at no-load condition is tested.
So, it is a meaningful study to estimate the fan
brake horsepower and air volume at fan under the
condition of no water flow. Let's see these through
the actual sample.
Example 18-1:
Determine the fan bhp and air volume at the no-load
condition under the assumption that the fan efficiency
remains unchanged from the design conditions.
The ambient dry bulb temperature is 63oF
and relative humidity is 68%.
(Solution)
The fan bhp at no-load condition could be estimated
by three ways as described before. That is, constant
fan pitch, constant fan bhp or constant gas. The
constant fan pitch would be most proper choice
of estimating the fan bhp and air volume at the

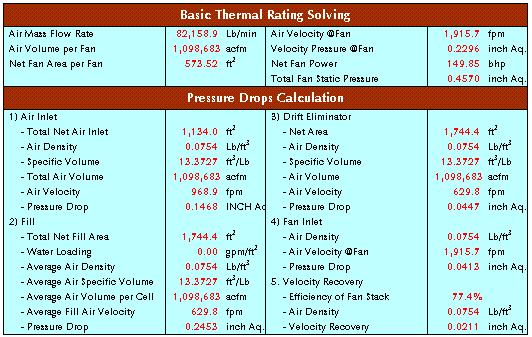

no load condition. Below results were obtained
by the method of constant fan pitch. The fan bhp
@no load condition is considerably increased while
the air volume is slightly increased. So, this
is why the fan test must be carefully done at
the no load and cold weather conditions.
