                          This is very principal of Hudson fan blade balancing
                          technique to help you for understanding the quality
                          of Hudson products. Hudson does not dynamically balance
                          even the large fan assemblies in their factory, since
                          Hudson have never found such balancing is necessary.
                        Hudson do statically balance
                          the hub assembly, and each blade is moment balanced
                          to a master standard. If fan assemblies must be dynamically
                          balanced as a firm customer requirement, then this step
                          must be accomplished at the job location. Note that
                          it is highly likely that the structure surrounding the
                          fans could also influence the final balance point, thus
                          dynamic balancing of installed fans may infect, yield
                          better result.
                        You have to know that the
                          cost for dynamic balancing is the cheapest than one
                          for static balancing, since its procedure is very simple.
                          However, you have to dynamically balance the fan assemblies
                          whenever to change the blades. Note that a way of statically
                          balancing each blade is a best methods to reduce such
                          inconvenience.
                        Hudson fans are component
                          (each blade and hub) balanced as compared to whole fan
                          assembly balance. This allows individual blades to be
                          changed at job sites without rebalancing the whole fan

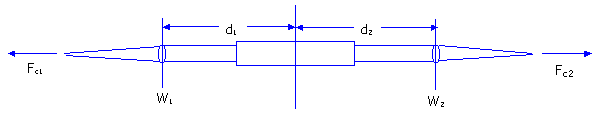

                          assembly. Picture a hypothetical 2 blades fan from a
                          side as the figure below.

                        Where, W1 and
                          W2 are blade weight.
                          d1 and d2 are distance to center
                          of gravity of blade.
                          Fc1 and Fc2 are centrifugal forces
                          created by the rotating blades.
                        Centrifugal forces acting
                          on a rotating system impels particles radically outward
                          from the axis of rotation. If the masses of rotating
                          components are evenly distributed about its shaft axis,
                          the part is "balanced". To have a balanced
                          system, there should be an equilibrium in centrifugal
                          forces as follows:
                        Fc1 = W1
                          x d1 x (RPM1) / g
                          Fc2 = W2 x d2 x (RPM2)
                          / g
                        For equilibrium in centrifugal
                          force, Fc1 = Fc2.
                        Thus, it becomes W1
                          x d1 = W2 x d2, since
                          RPM1 = RPM2.
                        From the above analogy, the
                          equilibrium of centrifugal forces becomes the equilibrium
                          of moments (weight x distance to center of gravity).
                        The Hudson computer controlled
                          electronic balancing machine are used to balance the
                          blades, and this machine will not print its serial number
                          if a blade is out of Hudson manufacturing tolerance.
                             |
