Because efficiency varies along pitch lines and with air flow, power can be saved and noise & vibration may be reduced by simply fine-tuning a fan? operating point. At various speeds, calculate operating points using speed factors, and check efficiencies at these points on the fan curve. Speed factor = curve speed / actual speed. If, for example, the curve tip speed was 12,000 ft/min, and the new speed is 10,000 ft/min, the speed factor = 12,000/10,000 = 1.2. (This can also be calculated in rpm. Tip speed = rpm x pie x fan diameter, or rpm = tip speed / pie x D.)

After calculating the speed factor, find the fan? new operating point: (ft³/min)₂ = (ft³/min)₁(speed factor), or (total pressure)₂ = (total pressure)₁(speed factor)². Using the speed factor, the fan speed can be changed at will. Each new speed and pitch angle will improve or worsen the efficiency of original starting point. Plot total pressure vs. ft/min air flow for various pitch angles on the appropriate fan curve to obtain the horsepower requirements. Note that the pressure and flow work are the same at all the operating points, at which pitch angles differ.

The point here is that, within limits, the fan speed can be varied so that a pitch angle can be selected which will optimize fan blade efficiency and will satisfy the required system resistance. Often it would be desirable to slow the fan down to attain a higher, more efficient operating pitch angle as an operating point. This also has a side benefit of reducing noise and vibration because normally the lower pitch angles which appear obvious choice to handle the duty have lower efficiencies.

Still another aspect of system efficiency is the proper selection of the fan diameter for any given conditions, operating and economic. There are several things which influence the choice of fan diameter as below:

• Air Flow Range
• Fan Coverage
• Optimum Cell Size
• Evaluated Horsepower
• Standard Sizes Available

Of these, the most logical influence is that the fan must provide the amount of air flow required for any duty in a sensible operating range. A quick look at any vendor's fan curve will yield several sizes of fans to do any particular job. A poorly sized fan will waste horsepower at the least and fail to do the required duty at the worst.

For wet cooling towers, the optimum cell size and evaluated horsepower comes into play. Both are purely economic considerations. Optimum cell size is obviously matching fan size to minimized construction cost per cell. The evaluated horsepower (E.H.) is increasingly becoming the major factor in deciding fan diameters. E.H. is a "dollars per horsepower" penalty added to a bid which is a measure of operating costs of that design over the capitalized life of that particular tower. Evaluated horse-power of $550/hp to as much as $2,500/hp are becoming common. The significance of E.H. is that very frequently the difference in evaluated horsepower of several fan selections can exceed the cost of the fan by many times.

In reviewing the potential losses in efficiency in the fan itself we have discussed two inherent losses that were built into the system by design.

• Poor fan blade design
• Poor selection of operating point

We also discussed the factor of optimized diameter which was decided economically before the air moving device was built. The two factors which could be physically modified to reduce fan system losses would be the addition of the hub seal disc and the revision of the fan operating point to a more efficient condition, although a change in the number of blades or gear reduction ratio might be required for the latter.

(2) The Fan Housing: The components that make up the fan housing would be considered a straight or velocity recovery stack for cooling towers. The most important system loss for both types would be the air leakage around the tips of fan blades. This loss is a direct function of the tip clearance with the stack and the velocity pressure at the operating point. This leakage is caused by the tendency of the high pressure exit air to recirculate around the tips into the low pressure air in the inlet. The loss takes the form of reducing the total efficiency and total pressure capability of the fan. There are several areas where inlet conditions can seriously affect the fan system.

• Velocity Recovery Stack: Refer to Chapter 4 for more details.
• Approach Velocity Consideration: Sometimes the economics of structural costs may unintentionally create very serious effects upon the system performance. As with inlet losses to the fan, the magnitude of the loss is a function of the velocity pressure which itself is a function of air velocity. It is considered good practice to insure that the air velocity at the entrance to the fan is no more than approximately one-half of the velocity through the fan throat.

(3) Unwanted Air Movements: There are often cases where in order to increase performance, you need to reduce air flow. These are cases where the warm exit air flow recirculates to the inlet side of the fan and decreases the mean temperature difference between the cold entering air and the hot water temperature in full thus lowering efficiency of the cooling tower.

The main factors which influence the tendency to recirculate are primarily inlet or approach velocity, exit velocity and velocity of prevailing winds. Gunter and Ships have formulated simple analytical methods to predict recirculation in a cooling tower utilizing the above parameters. The primarily causes of recirculation could be summarized as follows:

• Excessively high approach velocities
• Units placed in line with the prevailing wind direction
• Units placed at elevations so that the exit of one is upstream of the inlet of the adjacent unit.
• Low exit velocities, such as those encountered in forced draft tower.

Severe performance problems can result if recirculation is encountered. Recirculation can be confirmed by smoke testing and by temperature surveys of the exit and inlet air streams to a unit. To eliminate recirculation it is usually necessary to increase the exit airflow or changes the elevation of the exit flow by adding straight sided fan stacks. In some cases baffles may have to be considered.

In cooling towers the effect of the velocity recovery stack is to reduce the exit air velocity which could promote recirculation. It may be necessary to utilize straight stacks to jet the hot exit air further away from the approach or inlet areas.

Air leakage is another category of unwanted air flow. Air leakage could occur in a cooling tower at several places which lower the system efficiency.

• Missing access door panel in the fan stack
• Holes (pass way of coupling shaft) in the fan stacks
• Missing boards or holes in the fan deck

The net result of these problems is that the air movement intended to go through the fill takes the path of least resistance and consumes power but does not work.

3)Fan Tests

Since the fan test reports are not available, the result of fan test applied to the air cooled heat exchanger was quoted from a technical paper published by Hudson. There will be no much difference in the results with the application of cooling tower.

To illustrate the negative effects on fan systems efficiency we have discussed, a series of full scale fan tests were performed. The basic scheme was to test a forced draft air cooler at three different air flow rates in four conditions each:

• Standard (with inlet bell, seal disc, and close tip clearance)
• Remove inlet bells only. Test unit and replaces inlet bells.
• Remove seal disc only. Test unit and replace seal disc.
• Increase blade tip clearance.

A total of twelve tests were performed and a 20 feet x 32 feet, four row forced draft air cooler with two 14 feet diameter fans was tested. Modifications were made to the same single fan only. The fan operated at 10,000 FPM tip speed and was equipped with a 30 hp Reliance 1,160 rpm motor. The finned section was a typical 1" O.D. - 10 fins per inch extruded finned tube bundle. The unit was equipped with both steam coils and louvers which were locked in an open position during the test period. The testing equipment used included the following:

• Taylor Model 3132 Anemometer
• Draft Gauge
• Tachometer
• Westinghouse Model PG-101 Power Analyzer

(1) Procedure: For each test, air flow (CFM), static pressure, temperature, and electrical power consumed was measured. Electrical measurements included volts, amperes, watts, and power factor. Electrical power input was calculated by the relation:

                    V x A x Power Factor x 3^1/2
HPoutput =----------------------------------------------
                                    746

(Power factor: A measurement of the time phase difference between the voltage and current in an A-C circuit. It is represented by the cosine of the angle of this phase difference. For an angle of 0 degrees, the power factor is 100% and the volt/amperes of the circuit are equal to the watts. (This is the ideal and an unrealistic situation.) Power factor is the ratio of Real Power-KW to total KVA or the ratio of actual power (watts) to apparent power (volt-amperes). Real Power-KW is the energy consumed by the load. Real Power-KW is measured by a watthour meter and is billed at a given rate ($/KW-HR). It is the Real Power component that performs the useful work and which is affected by motor efficiency.)

Velocity Pressure was calculated by:

                            CFM
P = [--------------------------------------------- ]² Inch Aq.
        Net Free Area of Fan x 4005

System Efficiency was calculated by:

      Total Pressure Actual x CFM
E = ---------------------------------------------
               6356 x HP_input

Thus, the effect of only one variable was investigated for each of three flows which were at 0.061, 0.100 and 0.130 inches velocity pressure.

(2) Discussion of Results: Below table shows a comparison between curve fan efficiency and the tested system efficiency. Test 1 and 2 showed a 10 - 15 percent decrease from curve efficiency as might be expected. Test 3 showed a 30 percent decrease from curve efficiency which was surprising. Full scale testing at best cannot achieve accuracy or repeatability better than about plus or minus 5 percent. The effects of ambient winds during the test period are by far the biggest cause of error. Variations in velocity and direction during the test period cause most problems while objects around or on the test unit create eddy currents of wind with corresponding high and low pressure areas. The total system efficiency was considered "base" performance for the tests that followed.

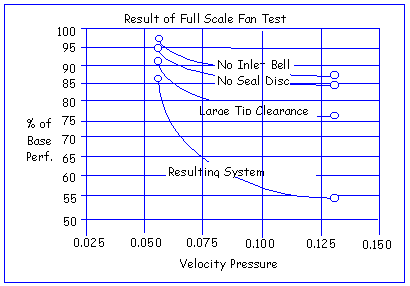

Considering the base performance in each case was 100 percent, let us examine the effect of each variable in turn. Below result of full scale fan test curve shows the negative effect of only one variable for each test point with the resulting decrease in base system efficiency.

In reviewing the results shown, it can easily be seen that the negative effects that rob system efficiency are a function of the velocity pressure. While not demonstrated on this test, previous tests have shown also that the effects of the three parameters studied are indeed cumulative. That is, the total decrease in performance will be the sum of each individual effect. Thus, we can see that the negative effects within the scope of this study would decrease the base performance of this test fan by magnitudes of 15 to an astonishing 58 percent. Keeping in mind the previous decrease in "base" system performance from the idealized "curve" system performance, this should point out the importance of considering the real system efficiency.
