1) General

As a highly visible tower component, the fan cylinder is often one of the finest targets for cooling tower modernization. The cylinder allows only moderate fan efficiency and elevation of the discharge air stream to help reduce recirculation. Such cylinders were normally constructed of concrete, wood or steel which precluded the construction of optimum cylinder shape. The development of modern GRP or FRP cylinders has allowed to design for maximum fan efficiency and for minimum discharge air recirculation. Cylinder design may be looked at as having three separate and highly important components;

• Fan Cylinder Entrance Section
• Fan to Cylinder Tip Clearance
• Velocity Recovery Section

As air is induced out of the plenum chamber beneath the fan, it tends to follow very predictable streamlines into the fan cylinder. As the air moves into the cylinder, a well-defined vena contracta develops (The point at which the flow area reaches its minimum is called Vena Contracta). This vena contracta actually defines the ideal shape of the fan cylinder as well as the optimum elevation of the fan in the cylinder. It is obvious that a fan located in the straight sided cylinder depicted in Figure A cannot possibly operate at full efficiency for three reasons;

• The fan tips, which represent a very high percentage at the fan disc area, are operating outside the vena contracta in a region of low air flow.
• The area between the cylinder wall and vena contracta develops high turbulence which further increases pressure losses and reduces fan efficiency.
• The location of the fan is so low in the cylinder that the air approaching the blades has not had a chance to straighten and is attacking the blades at an angle.

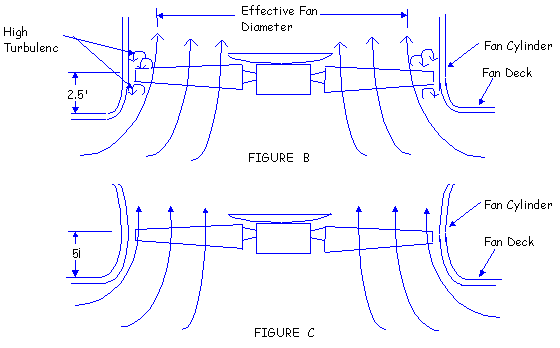

An energy loss occurs as the fan blades must turn the air, resulting in further efficiency degradation. Figure B depicts a more common cylinder that is an improvement over the straight-sided cylinder, but is far from optimum. This cylinder only partially recognizes the vena contracta? effect of reducing the effective diameter of the fan disc. The fan tips are operating in the low velocity, high turbulence zone and the angle of attack between the streamlines and fan plane is not vertical.

The ideal cylinder entrance and fan elevation design is shown in Figure C. This inlet produces minimum turbulence and pressure losses by following the natural shape of the discharge jet. The cylinder, in this design, confirms to the flow path that the air is attempting to take as it exits the tower. Note also that this cylinder properly locates the fan plane at a significantly elevated position, assuming that the air streamlines are vertical before they cross the plane of the fan disc.

An example of the relative performance between the optimum cylinder entrance in Figure C and cylinder shown in Figure B helps put the value of careful system design into perspective. A 22 feet diameter cooling tower fan may typically be required to move 700,000 CFM against a pressure drop of 0.40 inch H₂O. The CFM required is fixed by the cooling tower thermal duty and is the same regardless of cylinder design. The cooling tower system operation lines assume identical louver, fill, eliminator and plenum configurations - only the cylinders are different. The fan horsepower required to move 700,000 CFM is 119 BHP with the optimum configuration (Figure C) and 136 BHP with the improved, but not ideal design (Figure B). This is an important analysis for the project owner to consider whenever fan cylinder replacement is called for. Not all "modern" fiberglass cylinders allow the fan to perform at peak efficiency. Unless the cylinder manufacturer or the owner has the capability of analyzing the relationship between cylinder and fan design, significant operating savings can be overlooked.

Once the air is properly directed into the cylinder, maintenance of close tip clearance becomes the next consideration. The greater the dimension between the fan tip and the fan cylinder, the less efficient the fan. Space between the fan tip and cylinder allows the creation of air vortices at the blade tips which shorten the effective length of the blade, reducing fan performance. (Figure D)

Close tolerance between the blade tip and fan cylinder minimizes the magnitude of these disturbances, maximizing fan performance. For various, practical reasons, tip clearance must be greater than "zero" to accommodate wind-induced deformation of the cylinder, thermal expansion of the fan blade and the possible build-up of ice inside the cylinder under reverse flow conditions. Tip clearances of two-inch to three inch are not uncommon in cylinders designed without sufficient wind load capability, or without close attention to production and construction details.

The performance difference (in terms of horsepower) of a 22 feet diameter fan with a reasonable tip clearance, is approximately 4.5%. This makes it obvious that the tip clearance of a replacement design is critical. Much of the benefit obtained by utilizing a properly-eased cylinder inlet design can be lost if tip clearance is not rigidly controlled. Excessive tip clearance is usually the result of poor workmanship, poor fit-up, or inadequate structural design.

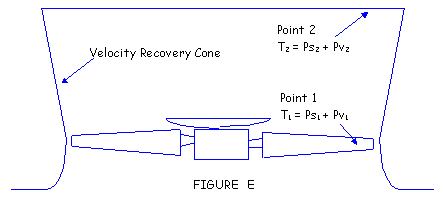

The next important aspect of good cylinder design is provision for a velocity cone. The addition of the velocity recovery cone to a fan cylinder is in recognition of the fact that the total energy (T) of a moving air stream is constant at all points except for viscous and turbulence losses. Total energy is the sum of the static pressure (Ps) and the velocity pressure (Pv) at a given point. Referring to the fan system shown Figure E, the total energy of the stream immediately above the fan (point 1) is: T₁ = Ps₁ + Pv₁. The total energy at the fan cylinder discharge (point 2) is: T₂ = Ps₂ + Pv₂. If L represents losses due to turbulence and drag between point 1 and point 2, and Ps₂ is atmospheric pressure, assumed equal to zero:

T₁ = T₂ + L
Ps₁ + Pv₁ = Ps₂ + Pv₂ + L
Ps₁ = (Pv₂ - Pv₁) + L

Since the velocity cone reduces the velocity of discharge air stream. Pv₂ is less than Pv₁. This means that relative to atmospheric pressure, the static pressure at a point just above the fan becomes more negative when the recovery cone is added. In other words, the pressure against which the fan operates has been reduced, allowing the fan to move the rated CFM at lower consumed horsepower. The loss (L) keeps the recovery from being complete. A common rule of thumb is that 70% of the difference in velocity pressure (Pv₂ - Pv₁) is recovered in the recovery cone portion of the cylinders. In actuality, this percentage may vary from 50% to 95%, depending on fan operating conditions.

If a 14 foot high velocity recovery cone is added to the ideal cylinder shown in Figure C, the horsepower required to move 700,000 CFM against 0.40?H₂O static pressure is further reduced from 119 BHP to 99 BHP. This represents an additional saving in the power consumption.

An important system consideration sometimes overlooked when increasing fan cylinder height is the impact that the taller stack has on the structure. The taller stack imposes greater dead loads, present a greater projected surface-to-wind loads and has more mass to respond to seismic acceleration. These loads must be handled in a cooling tower structure which may not be equipped with sufficient bracing to accommodate added stress.
